Troubleshooting 2950 Switch

Description: Configure switch ip address, default gateway (,and use ping command to verify the ip address. Ping default-gateway ( from the work station.

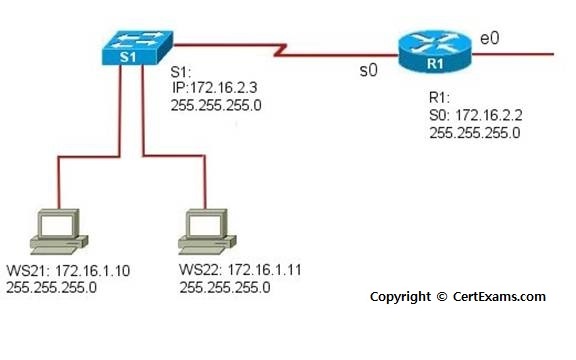

lab image


1. Issue appropriate command to view switch ip address, default gateway, and management vlan.

2. Enter privileged exec. Mode.

3. Enter terminal configuration mode.

4. Correct the configuration and bring up the interface using appropriate commands.

5. Use "ping" command from WS22 and verify that the connection to the default router is OK.

6. Exit privileged Exec mode.

2950#configure terminal
2950(config)#interface vlan 1
2950(config-if)#ip address
2950(config)#ip default-gateway
2950(config)#no shutdown

Note: The lab is supported only on network simulator software version.
