Catalyst 2960S Switch Configuration

Description : This lab exercise helps to understand the catalyst 2960S switch configuration and
the various commands pertaining to switches

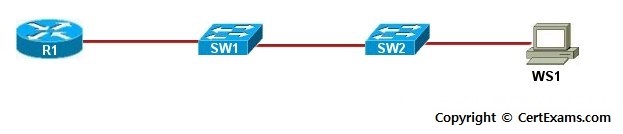

lab image


1. Enter into privileged mode of SW1 and enter ? which displays the commands available in privileged mode and type disable to go back to user mode

2. Enter into global configuration mode of SW1 and change its hostname to switch1 and issue show running-config command to view the active configuration

3. Enter copy run start command to save the active configuration into NVRAM and see the saved configuration in NVRAM with show startup-config command

4. Erase the saved configuration and type reload , a message prompt asking you "Do you like to save the changes to the configuration ?" , press No button.

5. Enter into privileged mode and then into global configuration mode and reassign the host name, and enable password of cisco

6. Assign IP Address of and a default-gateway of (R1’s Ethernet Address) to SW1

7. Connect to SW2 and configure it with hostname switch2 and enable a password of cisco, assign it an IP Address of and a default-gateway of (R1’s Ethernet Address)

8. Issue show mac-address-table command to display which devices are attached to which switch ports

9. On SW2, permanently assign a device with MAC Address 2222.2222.2222 to port fa 0/4. Issue show mac-address-table command to verify that the device is in the table as a permanent entry

10. On SW2, configure port security for port fa 0/7. The switch will learn the MAC address of the device connected to port fa 0/7 and will allow only that device to connect to the port in future

Note: Please refer to the CertExams.com Network Simulator software for complete lab with commands.
