CertExams.com Simulator Lab Exercises Answers

Setting Host Name

Console Based  |  GUI Based

Console Based :

Description: You set the router host name. Go to N/W diagram and choose device R1. Note that you can also use short form commands such as "conf term" in place of full command "configure terminal".

Instructions:

1. Enter into privileged mode

2. Enter into global Configuration Mode

3. Set hostname as cisco.

R1>enable
R1#configure terminal
R1(config)#hostname cisco

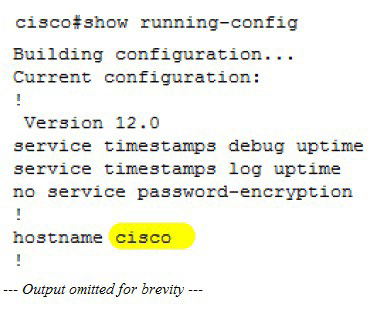

You can give “show running-config” command to check the output ,where hostname changed to
cisco from R1

lab image

GUI Based :

Description: This basic exercise illustrates the steps required to set a hostname to a router.

Instructions:

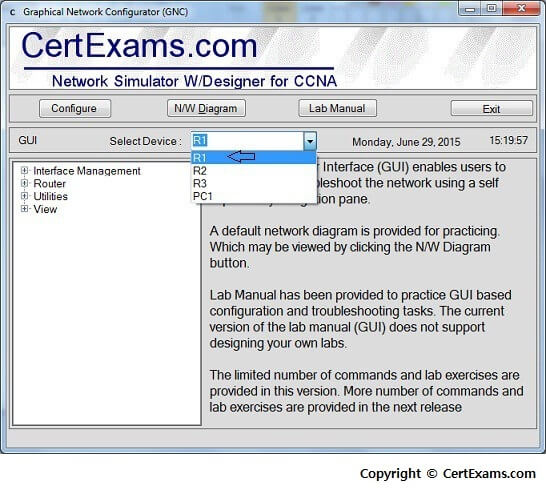

1. Select device R1 from Select device drop-down list.

lab image

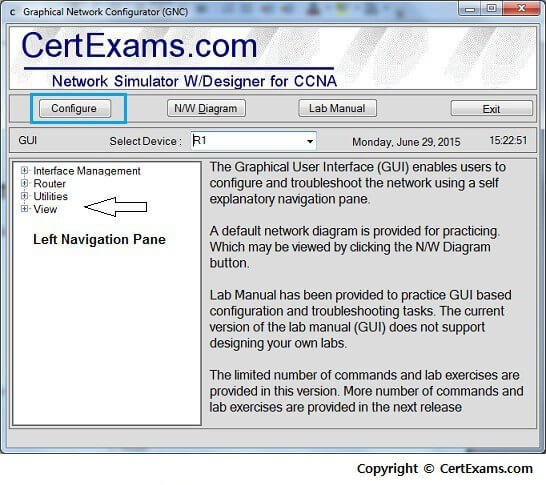

2. Click Configure button, this enables left navigation pane.

lab image

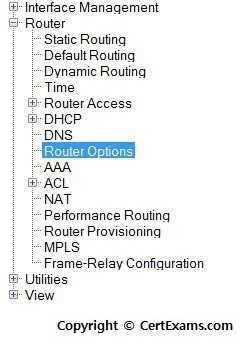

3. In the left navigation pane Click Router > Router Options .

lab image

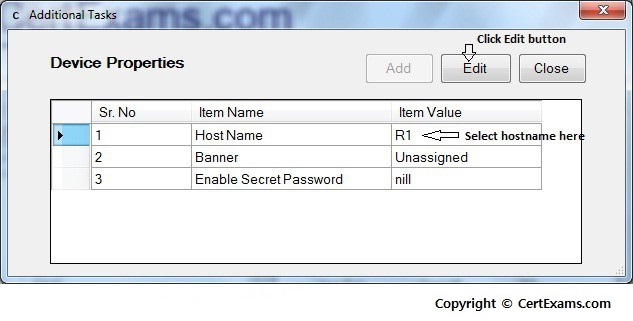

4. This displays Additional tasks screen with Device Properties . In device properties list select Host Name and click Edit button.

lab image

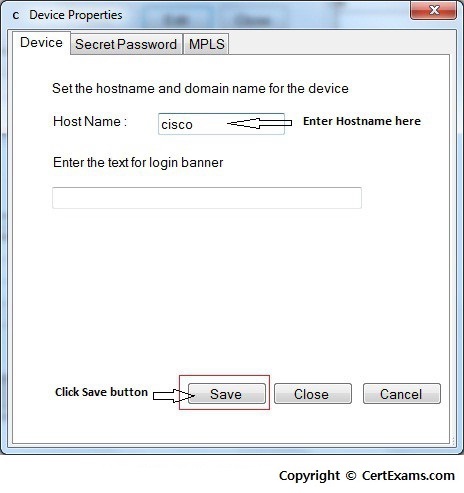

5. Device properties screen appears, enter Host Name in HostName field and click Save button.

lab image
