CertExams.com Simulator Lab Exercises Answers

PPP Configuration

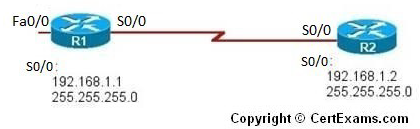

Description: Configure ppp across a point-to-point network as shown in the network diagram below.

Instructions:

1. Configure for PPP on router R1 Serial 0

2. Configure "stac" compression on R1.

3. configure for PPP on router R2 serial 0.

4. configure "stac" compression on R2.

5. Verify PPP compression by using appropriate show command.
Issue the command on router2.

R1>enable
R1#configure terminal
R1(config)#interface serial 0
R1(config-if)#ip address 192.168.1.1 255.255.255.0
R1(config-if)#encapsulation ppp
R1(config-if)#compress stac

R2>enable
R2#configure terminal
R2(config)#interface serial 0
R2(config-if)#ip address 192.168.1.2 255.255.255.0
R2(config-if)#encapsulation ppp
R2(config-if)#compress stac
R2(config-if)#exit
R2(config)#exit
R2#show compress
