Frame-Relay Full Mesh Topology

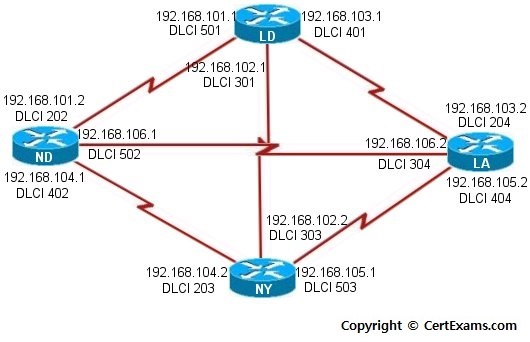

Description : This exercise demonstrates configuring Full Mesh Topology using Frame-Relay sub-interfaces.




Instructions:

1. Assign hostnames of LD, ND, NY and LA to R1, R2, R3 and R4 respectively

2. On LD, enter interface configuration mode for Serial 0 interface and set the encapsulation type to Frame-Relay and enable the interface

3. Now create a sub-interface for the connection between LD and ND and assign the DLCI number to the sub-interface and configure it with appropriate IP Address and enable the sub-interface

4. Create a sub-interface for the connection from LD to NY and assign the DLCI number and configure it with IP Address and enable the sub-interface

5. Create a sub-interface for the connection from LD to LA and assign the DLCI number and configure it with IP Address and enable the sub-interface

6. Access the Serial 0 interface of ND and set the encapsulation to Frame-Relay and enable the interface

7. Create the first sub-interface for the connection from ND to LD and assign the DLCI number, configure it with IP Address and enable the sub-interface

8. Create the sub-interface for the connection from ND to NY and assign the DLCI number, configure it with IP Address and enable the sub-interface

9. Create the sub-interface for the connection from ND to LA and assign the DLCI number, configure it with IP Address and enable the sub-interface

10. Access the Serial 0 interface of NY and set the encapsulation to Frame-Relay and enable the interface

11. Create the first sub-interface for the connection from NY to LD and assign the DLCI number, configure it with IP Address and enable the sub-interface

12. Create the sub-interface for the connection from NY to ND and assign the DLCI number, configure it with IP Address and enable the sub-interface

13. Create the sub-interface for the connection from NY to LA and assign the DLCI number, configure it with IP Address and enable the sub-interface

14. Access the Serial 0 interface on LA and set the encapsulation to Frame-Relay and enable the interface

15. Create the first sub-interface for the connection from LA to LD and assign the DLCI number, configure it with IP Address and enable the sub-interface

16. Create the sub-interface for the connection from LA to ND and assign the DLCI number, configure it with IP Address and enable the sub-interface

17. Create the sub-interface for the connection from LA to NY and assign the DLCI number, configure it with IP Address and enable the sub-interface

18. Now, all interfaces should be up. Connect to LD and try to ping each of the three offices (ND, NY and LA)

19. Connect to ND and ping the other three offices

Note: Please refer to the CertExams.com Network Simulator software for complete lab with commands.
