Configuring Root Switch

Description: This lab exercise demonstrates the necessary commands to configure the root switch.

Instructions

1. Enter into configuration mode on SW1

2. Issue the command "spanning-tree vlan <vlan-num> root" that modifies the switch priority from the default 32768 to a lower value to allow the switch to become the root switch for VLAN 1

3. Verify the configuration using “show spanning-tree” command.

SW1>enable
SW1#configure terminal
SW1(config)#spanning-tree vlan 1 root
SW1(config)#exit

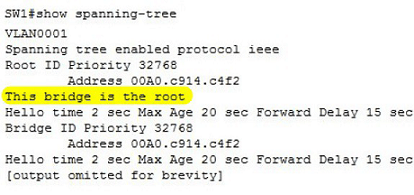

SW1#show spanning-tree


lab image
