Configuring ISDN using BRI-Routing

Description: The purpose of this lab exercise is to configure ISDN BRI 0 interfaces on R5 and R1, and test for connectivity.

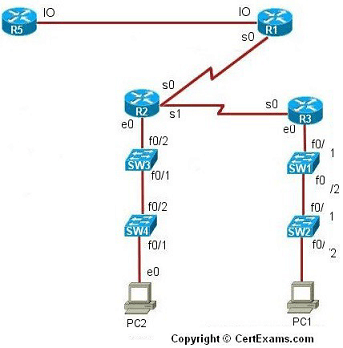

Network Diagram:

Instructions:

1. Assign IP address on all the devices as per the above diagram (On R1 and R5 sub-interface #1 is used)

2. Set the Encapsulation parameters appropriately on R1 and R5

3. Ping from PC1 to PC2 and vice versa

NOTE: ISDN Concepts and ISDN Labs have been excluded as per Current Cisco CCNA Objectives but these labs can be referred if interested.
