Implementing default routes

Description : This lab demonstrates configuring and implementing default routes in a network.




Instructions:

1. Configure R1 Ethernet interface with IP Address 192.168.201.1/24 and serial interface with IP Address 192.168.1.1/24 and enable the interfaces

2. Configure R2 Ethernet interface with IP Address 192.168.200.1/24 and serial interface with IP Address 192.168.1.2/24 and enable the interfaces

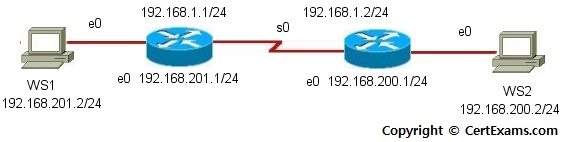

3. Configure workstations WS1 and WS2 with the IP addresses and default-gateways as shown in the figure

4. Ping from R1 to R2, R1 to WS1 and R2 to WS2 and see that they are successful

5. Ping from WS1 to WS2 and see that it fails

6. Now set up default routes on R1 and R2 using ip route command by specifying appropriate next hop address

7. Ping from WS1 to WS2 and see that it is successful and also verify that every device can ping any other device

Note: Please refer to the CertExams.com Network Simulator software for complete lab with commands.
