Configuring frame-relay without sub-interfaces

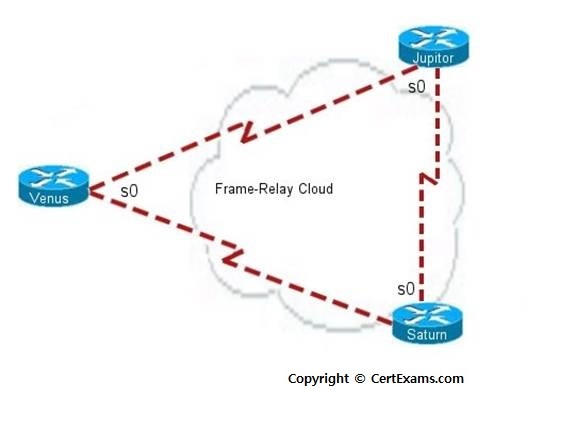

Description: Configure frame-relay without using sub-interfaces. This configuration example uses full mesh topology.


Note that on a frame-relay network without sub-interfaces, the LMI-type is automatically detected. Similarly, PVC DLCIs are learned through CMS status messages. There is no need to specify the same explicitly. On the otherhand, in a FR network with point-to-point sub-interface configurations, you need to specify the interface-dlci number.

Instructions:

IP Address Assignment Table

Device Interface
Venus-S0 192.160.1.1/24
Jupitor-S0 192.160.1.2/24
Saturn-S0 192.160.1.3/24

1. Specify frame-relay on S0 of Venus

2. Specify frame-relay on S0 of Saturn

3. Specify frame-relay on S0 of Jupitor


R1>enable
R1#configure terminal
R1(config)#hostname Venus
Venus(config)#interface serial 0
Venus(config-if)# encapsulation frame-relay
Venus(config-if)#ip address 192.160.1.1 255.255.255.0
Venus(config-if)#^z
Venus#

R2>enable
R2#configure terminal
R2(config)#hostname Jupitor
Jupitor(config)#interface serial 0
Jupitor(config-if)#encapsulation frame-relay
Jupitor(config-if)#ip address 192.160.1.2 255.255.255.0
Jupitor(config-if)#^z

R3>enable
R3#configure terminal
R3(config)#hostname Saturn
Saturn(config)#interface serial 0
Saturn(config-if)#encapsulation frame-relay
Saturn(config-if)#ip address 192.160.1.3 255.255.255.0
Saturn(config-if)#^z
Saturn#
